Metro web service notes

Java 7 contains a JAX-WS (RI) implementation. But it's functionality is limited.

Metro is a high-performance, extensible, easy-to-use web service stack that is build on top of RI: https://jax-ws.java.net/.


1. Download the latest Metro runtime from here(https://metro.java.net/2.3/) and extract it.

2. Copy the jars available from the download into the tomcat/lib.

3. Creating webservice

a) Create a dynamic web project. (WSServer)

You write your interface and implementation class.

package com.ws.inf;

import javax.jws.WebMethod;
import javax.jws.WebService;
import javax.jws.soap.SOAPBinding;
import javax.jws.soap.SOAPBinding.Style;
import com.ws.bean.MyBean;
@WebService
@SOAPBinding(style = Style.RPC)
public interface HelloWorld{

 @WebMethod MyBean getHelloWorldAsString();
}

package com.ws.imp;

import javax.jws.WebService;
import com.ws.bean.InnerBean;
import com.ws.bean.MyBean;
import com.ws.inf.HelloWorld;

@WebService(endpointInterface = "com.ws.inf.HelloWorld")
public class HelloWorldImpl implements HelloWorld{

 @Override
 public MyBean getHelloWorldAsString() {
  MyBean b = new MyBean(2);
  InnerBean ib = new InnerBean();
  ib.setValue("hello");
  b.setIb(ib);
  return b;
 }
}

Bean classes,

package com.ws.bean;

public class InnerBean {
 private String beanVal;

 public String getBeanVal() {
  return beanVal;
 }

 public void setBeanVal(String beanVal) {
  this.beanVal = beanVal;
 }
}
package com.ws.bean;

public class MyBean {
 private InnerBean ib;
 private int value;
 public MyBean() {

 }

 public MyBean(int v) {
 value = v;
 }

 public void setValue(int value) {
 this.value = value;
 }

 public int getValue() {
 return value;
 }
 public InnerBean getIb() {
  return ib;
 }

 public void setIb(InnerBean ib) {
  this.ib = ib;
 }
}

b) Create WEB-INF/sun-jaxws.xml

<?xml version="1.0" encoding="UTF-8"?>
<endpoints
  xmlns="http://java.sun.com/xml/ns/jax-ws/ri/runtime"
  version="2.0">
  <endpoint
      name="HelloWorld"
      implementation="com.ws.imp.HelloWorldImpl"
      url-pattern="/hello"/>
</endpoints>

c) Entries in web.xml

<listener>
 <listener-class>
   com.sun.xml.ws.transport.http.servlet.WSServletContextListener
 </listener-class>
</listener>
<servlet>
 <servlet-name>hello</servlet-name>
 <servlet-class>
  com.sun.xml.ws.transport.http.servlet.WSServlet
 </servlet-class>
 <load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
 <servlet-name>hello</servlet-name>
 <url-pattern>/hello</url-pattern>
</servlet-mapping>
<session-config>
 <session-timeout>120</session-timeout>
</session-config>

Note that if you are planning to test the webservice on a main method instead of a container then all you need to do is,

Endpoint.publish("http://localhost:8085/WSServer/hello", new HelloWorldImpl());

Here is a snapshot of project hierarchy.

d) Deploy on tomcat.

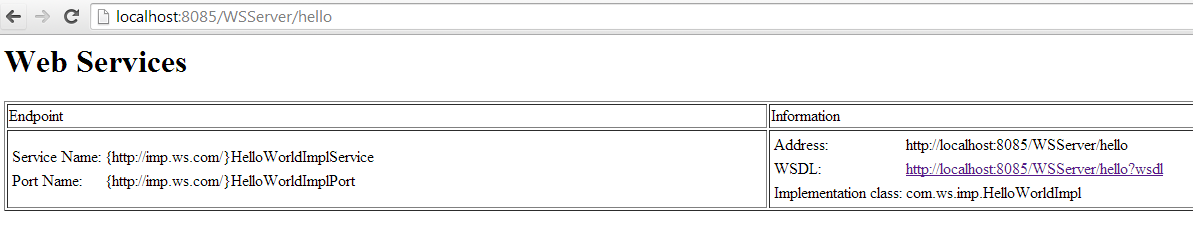

Check

http://localhost:8085/WSServer/hello

WSDL definition,

http://localhost:8085/WSServer/hello?wsdl

Namespace definition,

http://localhost:8085/WSServer/hello?wsdl=1

XSD definition,

http://localhost:8085/WSServer/hello?xsd=1

4. Writing client.

URL wsdlUrl = new URL("http://localhost:8085/WSServer/hello?wsdl");

// qualifier name ...
QName serviceName = new QName("http://imp.ws.com/",
  "HelloWorldImplService");

QName portName = new QName("http://imp.ws.com/",
  "HelloWorldImplPort");

Service service = Service.create(wsdlUrl, serviceName);

HelloWorld helloWorldInterface = service.getPort(portName, HelloWorld.class);

System.out.println(helloWorldInterface.getHelloWorldAsString().getValue());
System.out.println(helloWorldInterface.getHelloWorldAsString().getInbean().getValue());

For Document style you just specify the annotations,

@SOAPBinding(style = Style.DOCUMENT, use=Use.ENCODED)

It's optional to use JAXB annotations and I guess that makes
metro really easy to work with.
